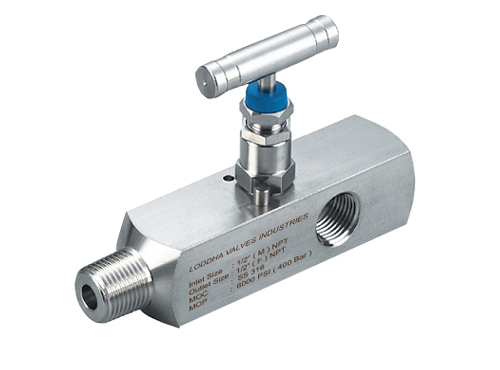

Multi Port Gauge Valve

Lodha industries manufacture a complete line of precision High Pressure Multi Port valves and Low Pressure Multi Port valves. Before use valve selection, be sure and consider the system required lpm (Flow) working pressure, operating temperature, and materials of construction. If your application requires a valve not available in this website so please contact us by email or contact number,

We make from Lodha brand the highest quality product Multi Port Gauge valves in India. There are many types of material use in this valve such as SS Multi Port Gauge valves, SS304Multi Port Gauge valves, SS 316 Multi Port Gauge valves and its use depends on its application. Instrumentation Multi Port Gauge valves are typically used for safe flow control calibration, isolation, and bleeding of systems Pressure Gauge , Pressure Switches and Pressure Transmitters. Quality product multi-Port Gauge valve is gives long life good service of low torque operation.

Specifications:



Design: Squire Body

Rating: Up to 10,000 psi @ 14°F to 176°F

Connection: BSP, NPT, & BSPT (Male-Female)

Bonnet Packing: PTFE & Meta to Metal

Gland Packing: PTFE

Size: 1/2” & 3/4”

Connections: Screwed

Body Stock: Bar Stoke & Forged Steel

Material: SS, CS and other Material on Request
